This reference is for Processing 3.0+. If you have a previous version, use the reference included with your software in the Help menu. If you see any errors or have suggestions, please let us know. If you prefer a more technical reference, visit the Processing Core Javadoc and Libraries Javadoc.

Name

directionalLight()

Examples

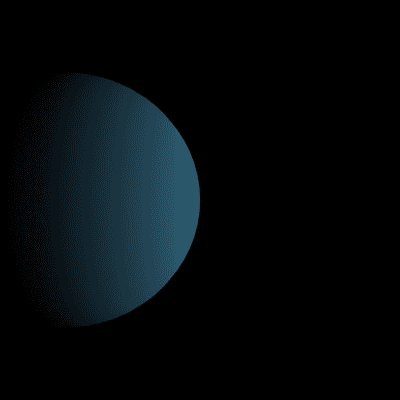

example pic
size(100, 100, P3D);
background(0);
noStroke();
directionalLight(51, 102, 126, -1, 0, 0);
translate(20, 50, 0);
sphere(30);

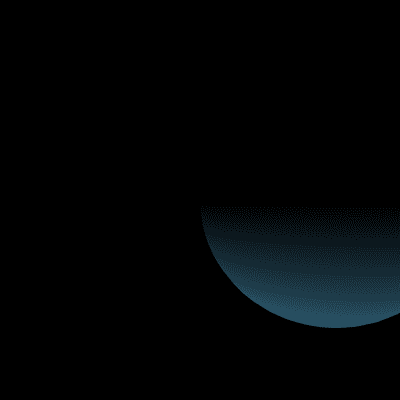

example pic
size(100, 100, P3D);
background(0);
noStroke();
directionalLight(51, 102, 126, 0, -1, 0);
translate(80, 50, 0);
sphere(30);
Description Adds a directional light. Directional light comes from one direction: it is stronger when hitting a surface squarely, and weaker if it hits at a gentle angle. After hitting a surface, directional light scatters in all directions. Lights need to be included in the draw() to remain persistent in a looping program. Placing them in the setup() of a looping program will cause them to only have an effect the first time through the loop. The v1, v2, and v3 parameters are interpreted as either RGB or HSB values, depending on the current color mode. The nx, ny, and nz parameters specify the direction the light is facing. For example, setting ny to -1 will cause the geometry to be lit from below (since the light would be facing directly upward).
Syntax
directionalLight(v1, v2, v3, nx, ny, nz)
Parameters
v1 float: red or hue value (depending on current color mode)
v2 float: green or saturation value (depending on current color mode)
v3 float: blue or brightness value (depending on current color mode)
nx float: direction along the x-axis
ny float: direction along the y-axis
nz float: direction along the z-axis
Returnsvoid
Relatedlights()
ambientLight()
pointLight()
spotLight()
