Name

ellipse()

Examples

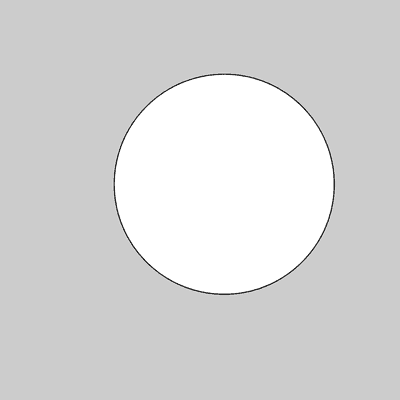

example pic
ellipse(56, 46, 55, 55);
Description Draws an ellipse (oval) to the screen. An ellipse with equal width and height is a circle. By default, the first two parameters set the location, and the third and fourth parameters set the shape's width and height. The origin may be changed with the ellipseMode() function.
Syntax
ellipse(a, b, c, d)
Parameters
a float: x-coordinate of the ellipse
b float: y-coordinate of the ellipse
c float: width of the ellipse by default
d float: height of the ellipse by default
Returnsvoid
RelatedellipseMode()
arc()
