Name

rotateZ()

Description

Rotates a shape around the z-axis the amount specified by the angle parameter. Angles should be specified in radians (values from 0 to PI*2) or converted to radians with the radians() function. Objects are always rotated around their relative position to the origin and positive numbers rotate objects in a counterclockwise direction. Transformations apply to everything that happens after and subsequent calls to the function accumulates the effect. For example, calling rotateZ(PI/2) and then rotateZ(PI/2) is the same as rotateZ(PI). If rotateZ() is called within the draw(), the transformation is reset when the loop begins again. This function requires using P3D as a third parameter to size() as shown in the examples above.

Examples

  • size(400, 400, P3D);
    translate(width/2, height/2);
    rotateZ(PI/3.0);
    rect(-104, -104, 208, 208);
    Image output for example 1
  • size(400, 400, P3D);
    translate(width/2, height/2);
    rotateZ(radians(60));
    rect(-104, -104, 208, 208);

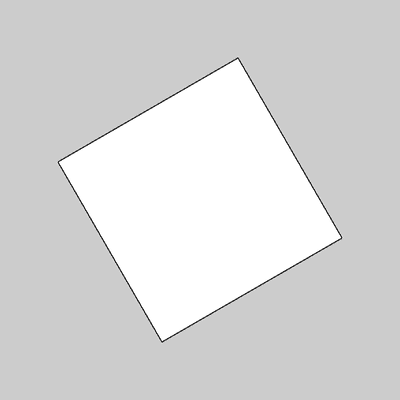

    Image output for example 2

Syntax

  • rotateZ(angle)

Parameters

  • angle(float)angle of rotation specified in radians

Return

  • void
