Name

set()

Description

Changes the color of any pixel or writes an image directly into the display window.

The x and y parameters specify the pixel to change and the color parameter specifies the color value. The color parameter is affected by the current color mode (the default is RGB values from 0 to 255). When setting an image, the x and y parameters define the coordinates for the upper-left corner of the image, regardless of the current imageMode().

Setting the color of a single pixel with set(x, y) is easy, but not as fast as putting the data directly into pixels[]. The equivalent statement to set(x, y, #000000) using pixels[] is pixels[y*width+x] = #000000. See the reference for pixels[] for more information.

Examples

  • size(400,400);
    color black = color(0);
    set(120, 80, black);
    set(340, 80, black);
    set(340, 300, black);
    set(120, 300, black);

    Image output for example 1
  • size(400,400);

    for (int i = 120; i < width-60; i++) {
      for (int j = 80; j < height-100; j++) {
        color c = color(j, i, 0);
        set(i, j, c);
      }
    }

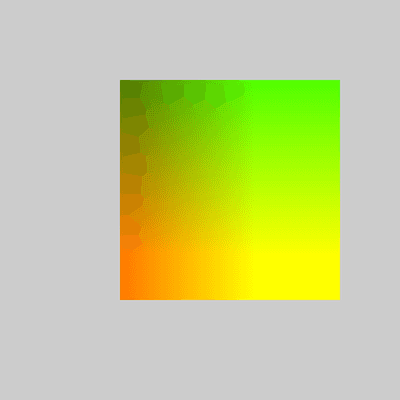

    Image output for example 2
  • size(400,400);
    PImage myImage = loadImage("flower.jpg");
    set(0, 0, myImage);
    line(0, 0, width, height);
    line(0, height, width, 0);

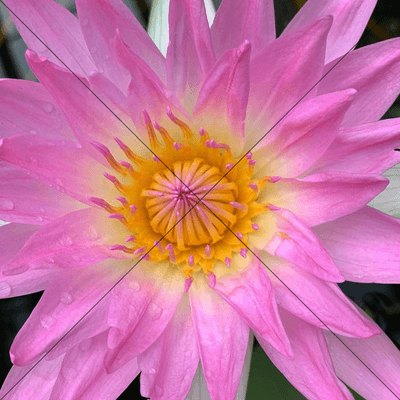

    Image output for example 3

Syntax

  • set(x, y, c)
  • set(x, y, img)

Parameters

  • x(int)x-coordinate of the pixel
  • y(int)y-coordinate of the pixel
  • c(int)any value of the color datatype
  • img(PImage)image to copy into the original image

Return

  • void
